Profile Measurement Service

Profile Measurement 1) Contact measurement CMM and Contour 2) Non Contact Measurement VMS

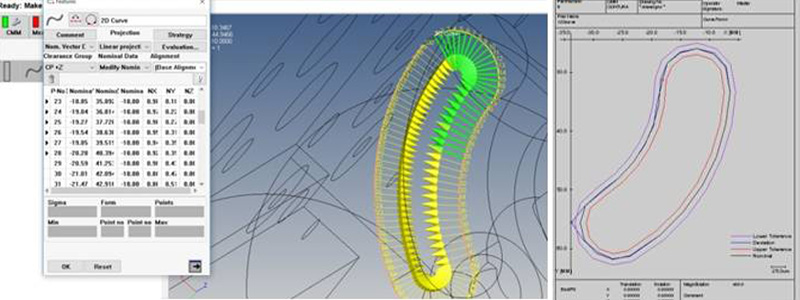

ZEISS CALYPSO curve : ZEISS CALYPSO curve enables measurements and analyses of 2D curves (intersection on one plane), 3D curves (intersection on a cylinder or freeform surface), lift curves, known and unknown contours and symmetry curves. Numerous curve-related characteristics can also be reported, including curve slope, curve stroke, curve distance, curve expansion, curve length, surface area, speed and acceleration.
Contour / Profile Measuring Machine- Surface contour evaluation : It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour.
