• We have successfully completed 5000+ projects.
• All types of part drawings are performed by using 3D laser scanning, CMM, VMS, and Contour.
• We are doing 2D and 3D designing and on site measurement & design support for reverse engineering
• We are doing 2D to 3D Conversion, 3D to 2D Conversion

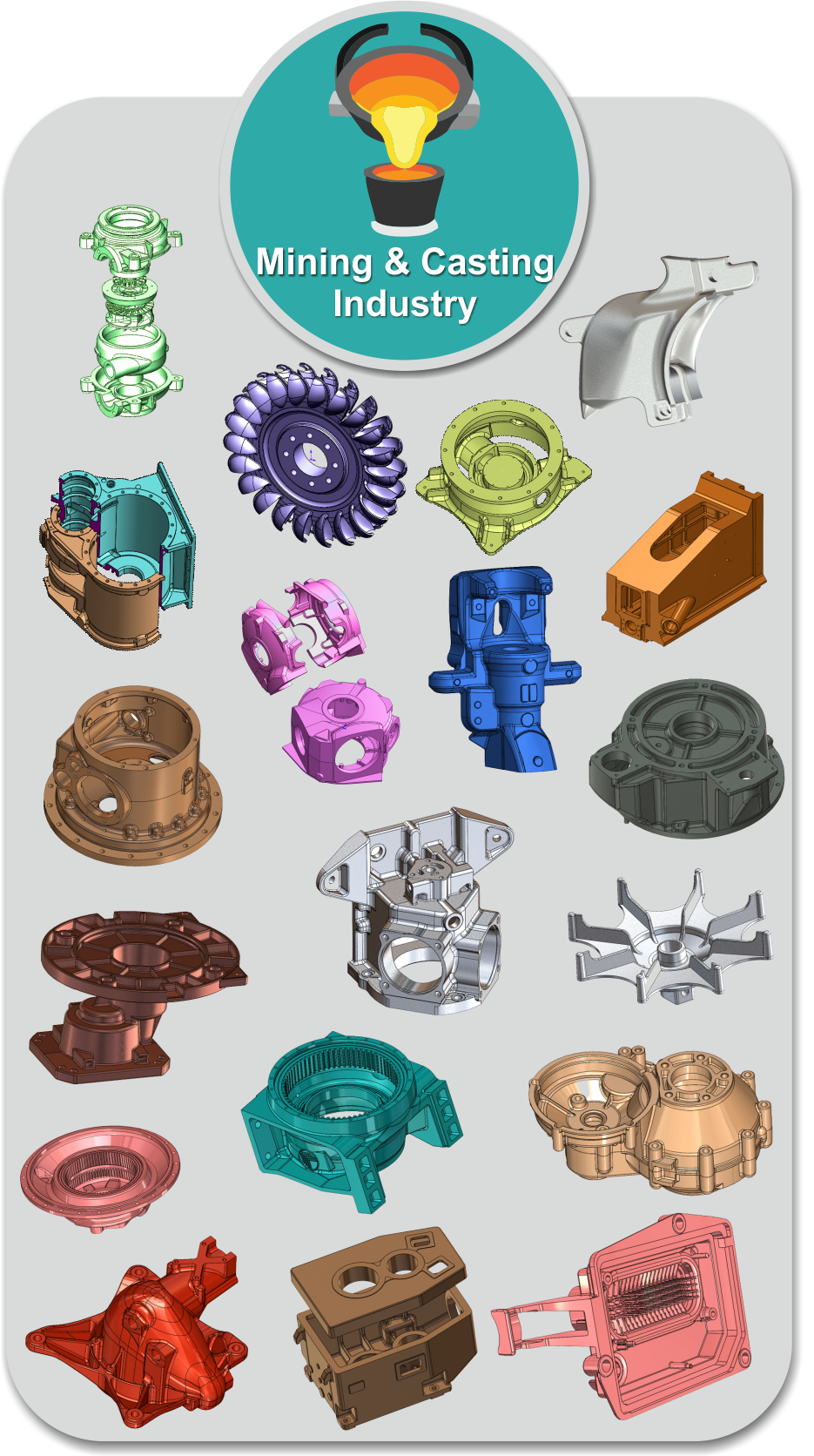

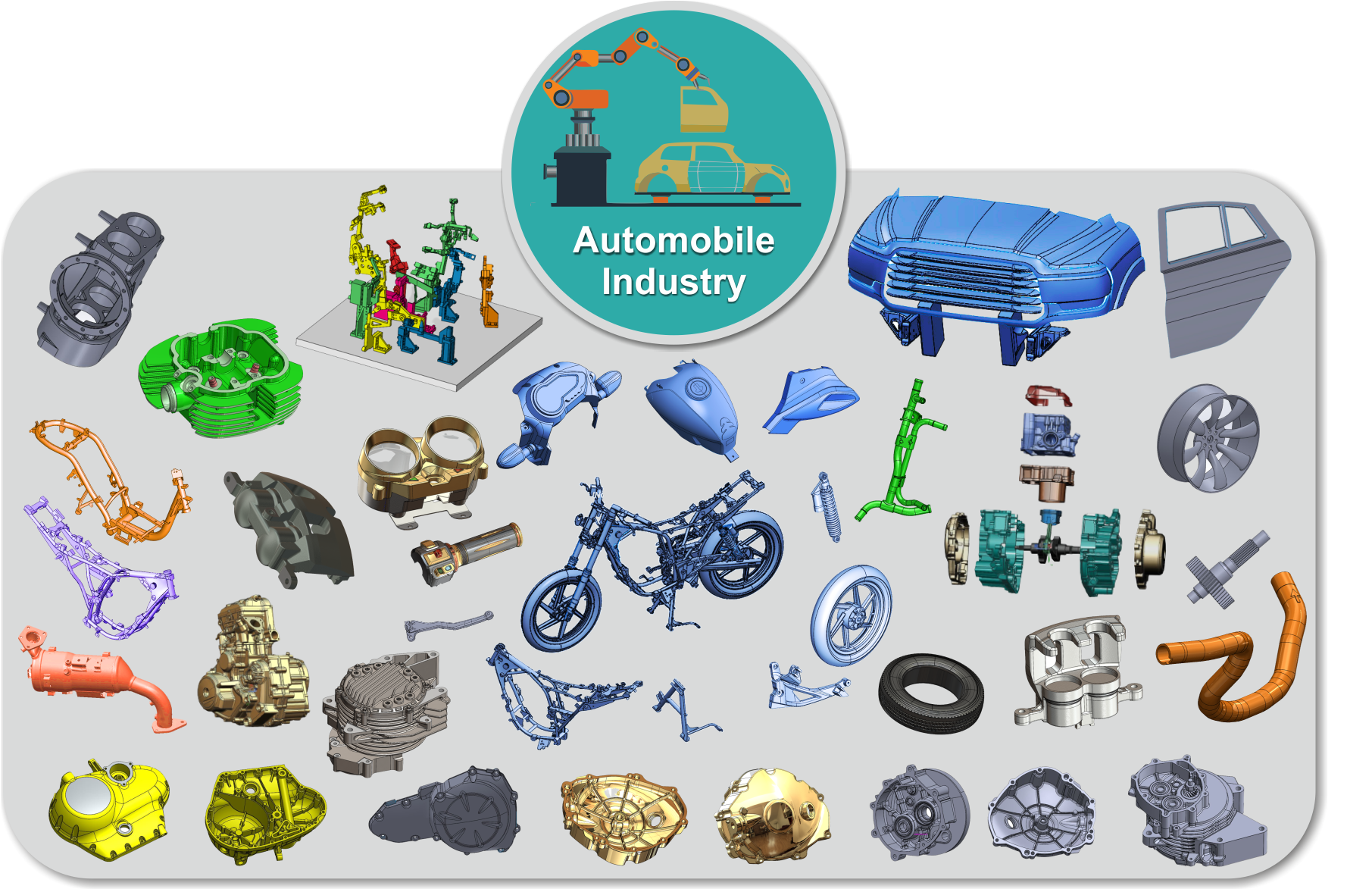

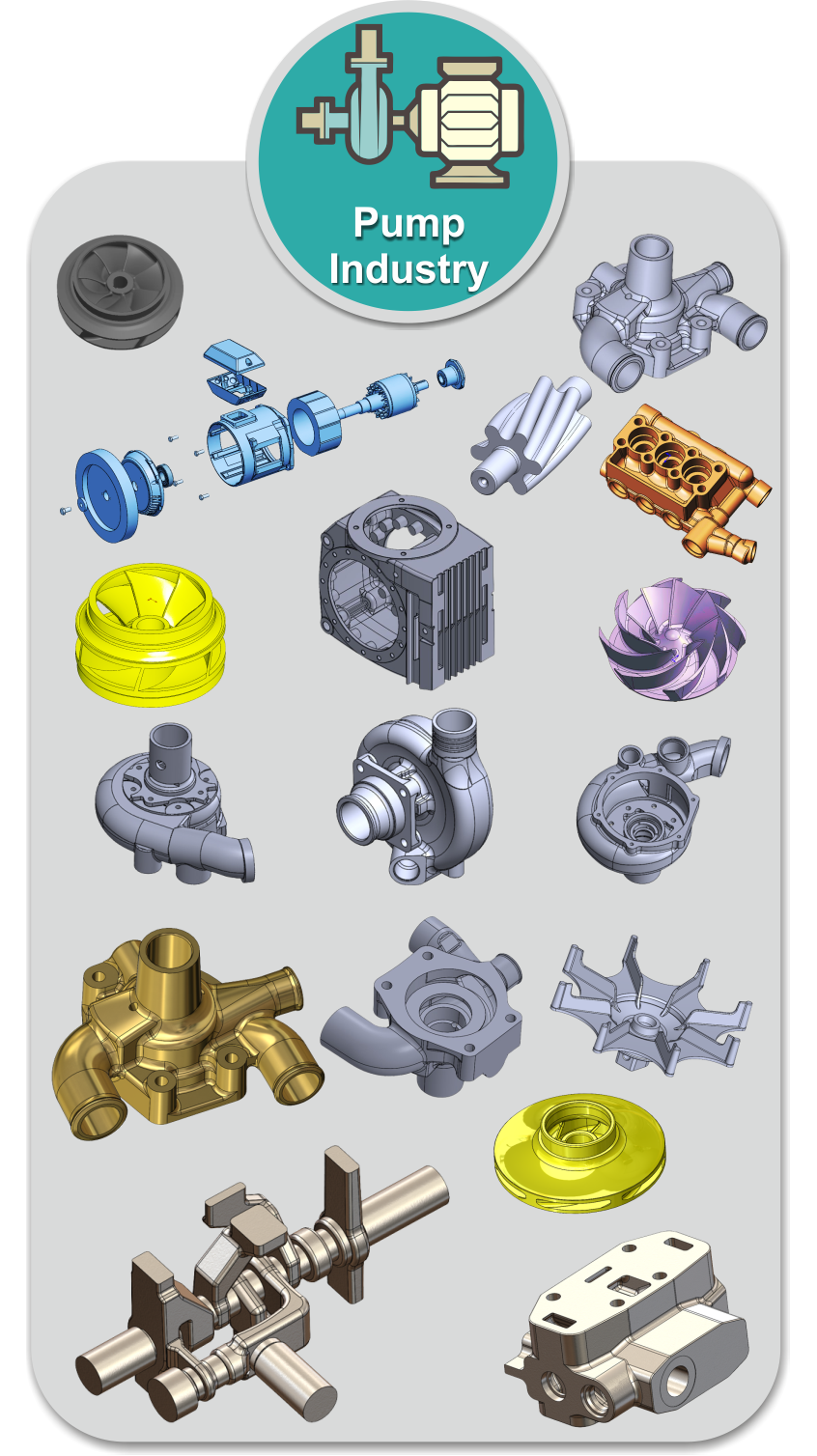

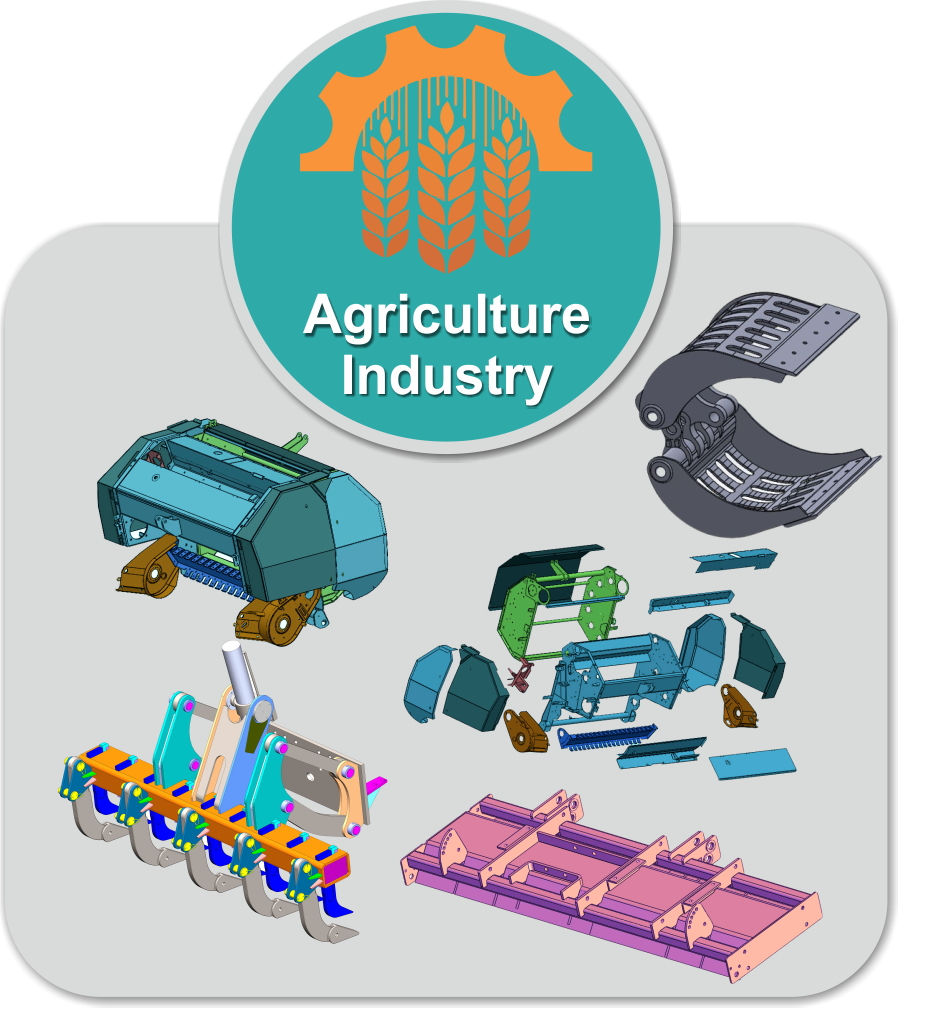

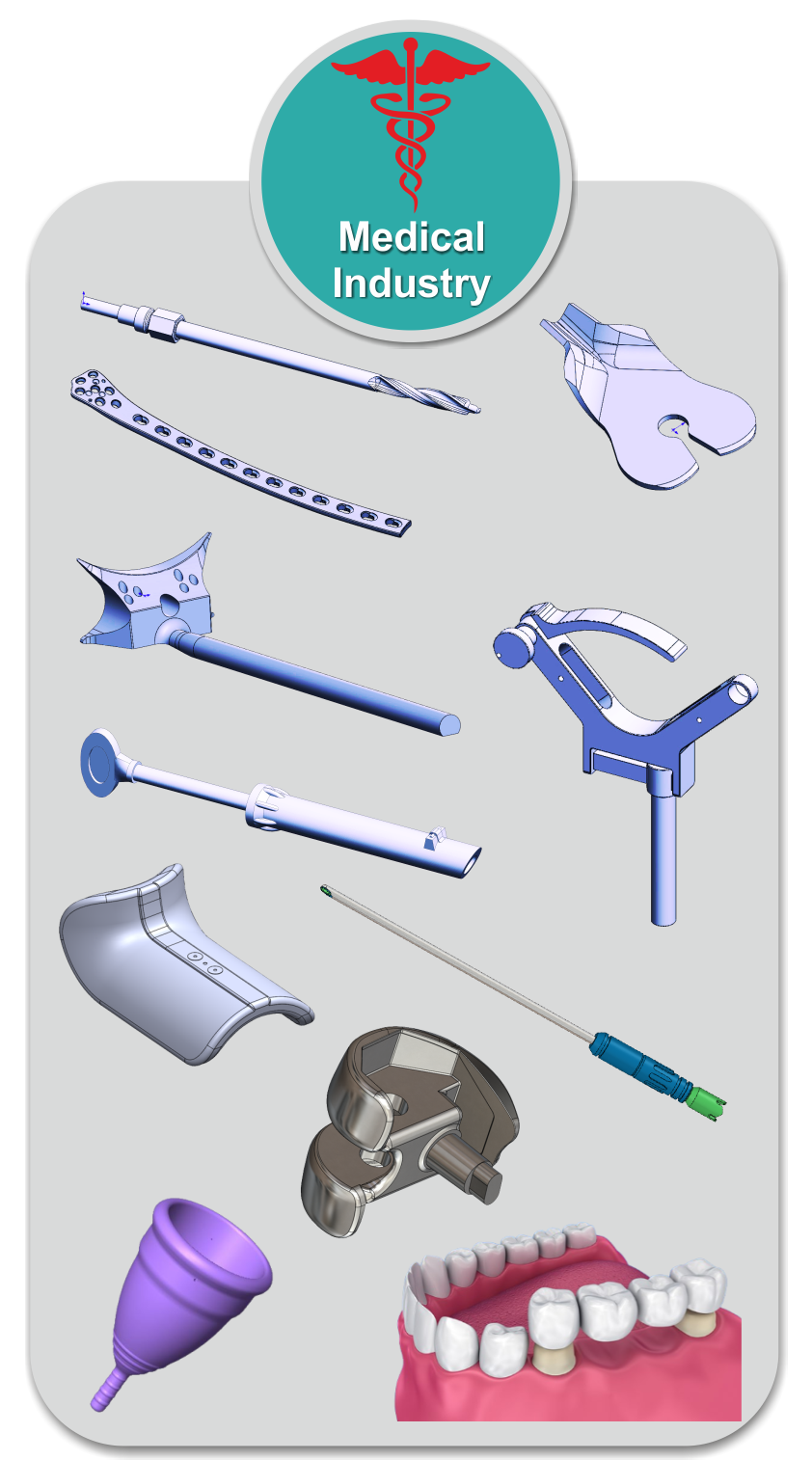

• We are doing Commercial, Medical, Windmill, Automobile, Earth Movers, Pump and Valves, Oil Industry, Defense, Railways, Power Generations, Foundry, Mining, Agriculture industry etc.

What Is Reverse Engineering?

Reverse engineering services recreate an accurate, editable 3D CAD model from an existing physical component — essential when original drawings are missing, outdated, or when a part needs to be redesigned, repaired, or remanufactured. Unique Measurement Service provides reverse engineering services across India using its 3D-CMM, laser tracker, 3D scanning and handy scanning equipment.

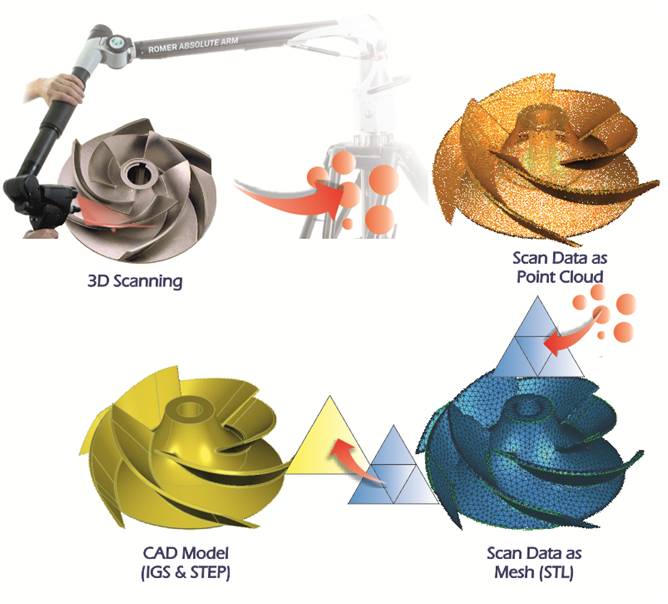

Our Reverse Engineering Process (Scan to CAD)

Our reverse engineering process starts with high-resolution 3D scanning or CMM digitizing of the component, followed by point cloud cleanup, surface/solid CAD modelling, and dimensional verification against the scanned data to ensure the final CAD model accurately represents the part within tolerance.

Applications

Reverse engineering services are widely used for legacy spare parts that are no longer manufactured, tooling, jigs and fixtures recreation, design modification of existing components, and competitor benchmarking. Industries served include automotive, aerospace, machine tools, earth-moving equipment and general manufacturing. With advanced scanning equipment, experienced CAD engineers, and NABL accredited quality processes, Unique Measurement Service delivers reverse engineering services India manufacturers can rely on.
